A10 Moto T-Sport Modular LP6 and S2 Mounting system For Softails, Dynas and Low Rider S

A10 MOTO
127095
Many in stock
Light Brackets
$199.00
Snap Logo Lease for as low as $/week Learn More

New Release!

Get the Ultimate Lighting and Fairing Combo Kit for your Ride!

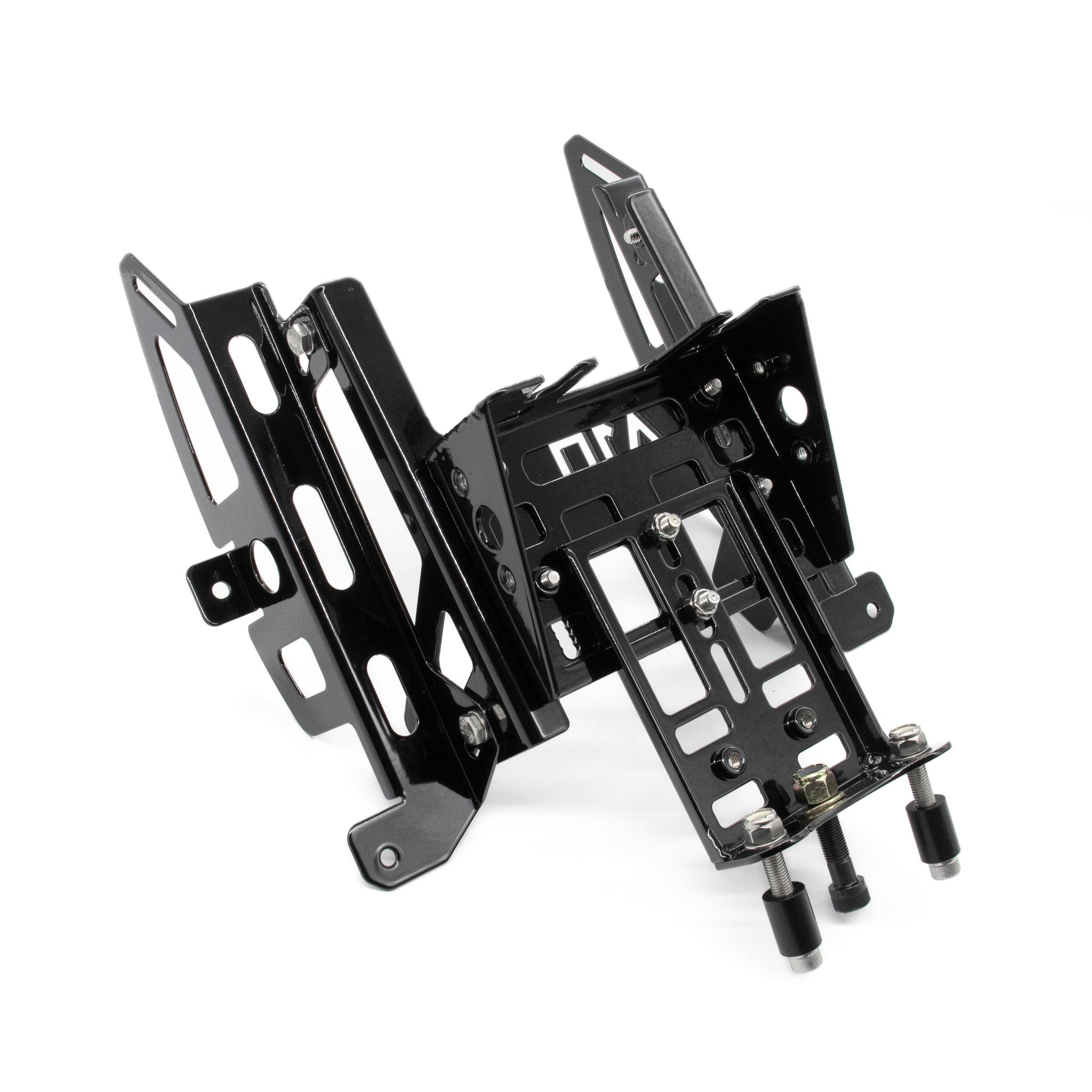

Check out our New Modular Fairing mounting system. One System integrates the LP6, Dual S2 Lights below the Fairing, and Billet Turn Signals as shown below.

The Above Image shows all options in this kit (Sold Separately)

Working in Partnership with AdvanBlack and utilizing their high-quality fairings, We have created an entirely new mounting system made specifically for their T Sport fairing.

What makes this kit so cool? We have integrated the fairing mount, light mount, and optional S2 and Turn Signal mounts all in one system.

Adjust your LP6 Up and Down depending on preference and if you need clearance for S2 lights. Tilt the fairing to your desired angle.

Able to run Billet turn signals using the Baja Designs S1 platform and they are positioned just outside the lower clamp which frees up bar-mounted turn signals to be removed or switch those out with additional S1's as well.

Fitment: Fits the Low Rider S, Early and Late Dynas, Softails, Sport Glide, and Most Any Bike with a 3.5" Tree bolt pattern.

Simply Put... The Absolute Brightest Light Kit Available for Your Ride!

Basic Starter Kit Sku 127095 Kit will come with the following:

  1. Fairing Mounting Hardware that adjusts tilt and height.

  2. LP6 Light Mount

  3. Lower Support bracket

  4. Hardware needed for the above components.

Modular Add-On Options:

  1. ADD Twin S2 Mounting Kit Below your Fairing "Click Here"

  2. ADD Billet Turn Signal Brackets and Billet Mounts for S1 Lights to this Modular Design "Click Here"

    Enhance your Harley Davidson motorcycle’s visibility with A10 MOTO’s Performance Lighting Systems featuring the ultra-bright LP6, LP4, and other Baja Designs lights. Experience unparalleled illumination for safer, more enjoyable rides.
    A10 MOTO.

    What’s Included:

    Qty Bracket Part Number / Description
    1
    127095-1B Coating Main Bracket
    1 129095-2 Coating Main Mount
    1 127095-3C Coating Lower Support Bracket
    1 127095-4C Coating
    1 127095-5C Coating



    Hardware Included:

    QTY Hardware Description
    2
    Kits #3002 (8- 1/4x20x.75 bolts and washers)
    1 Kits #3004 (2 - 5/16-24x1.75 bolts, 2- 1/4 Washers , 2- 1/4 nylock nuts)
    2 Black Aluminum spacers .319 ID x 5/8OD x 7/8 length
    1 3/8x18x1.75 Grade 5 Bolt (dyna lower support)
    1 3/8x18 Nylock Nut Grade 5 Zinc std. (dyna lower support)
    1 3/8 Washer SAE std Grade 5 (dyna lower support)

    What’s Included:

    Qty Bracket Part Number / Description
    1
    127095-1B Coating Main Bracket
    1 129095-2 Coating Main Mount
    1 127095-3C Coating Lower Support Bracket
    1 127095-4C Coating
    1 127095-5C Coating

    Hardware Included:


    QTY Hardware Description
    2
    Kits #3002 (8- 1/4x20x.75 bolts and washers)
    1 Kits #3004 (2 - 5/16-24x1.75 bolts, 2- 1/4 Washers , 2- 1/4 nylock nuts)
    2 Black Aluminum spacers .319 ID x 5/8OD x 7/8 length
    1 3/8x18x1.75 Grade 5 Bolt  (dyna lower support)
    1 3/8x18 Nylock Nut Grade 5 Zinc std. (dyna lower support)
    1 3/8 Washer SAE std Grade 5 (dyna lower support)
