A10 Moto 20+ Low Rider S and Sport Glide Dual LP4 Combo Kit 127080
$279.99
New Improved Kit!
Now with Extra Strong Lower Support bracket and improved modularity on rear main bracket to allow for added Billet Turn Signals and S2 Lights below

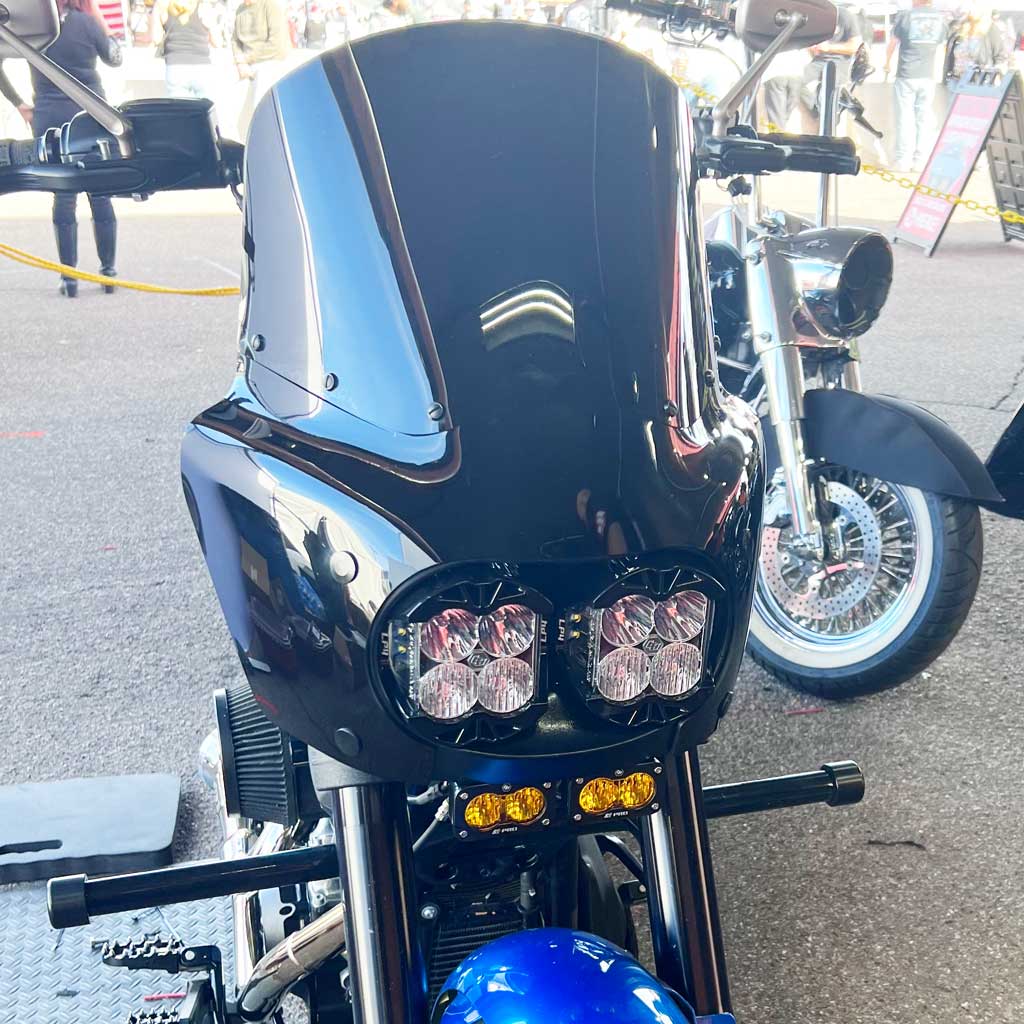

This A10 Moto's Dual LP4 Kit is made specifically to fit the 2020+ Harley Davidson Low Rider S and 2018+ Sport Glide.
Works with Memphis Shades Fairing Kit: MEM7401
Important! What you need to make this kit work:
- Memphis Shades Fairing model 7401 (available Here) Mounting Kit not needed as we include the Fairing Taco Brackets with our Kit 127080.
- If you want to Add S2 Kit below you will need #127070 Kit plus S2's
Our harnesses allow for low and high beam.
This Dual LP4 Kit fits the Low Rider S and Sport Glide and utilizes both upper and lower mounts to secure mount.

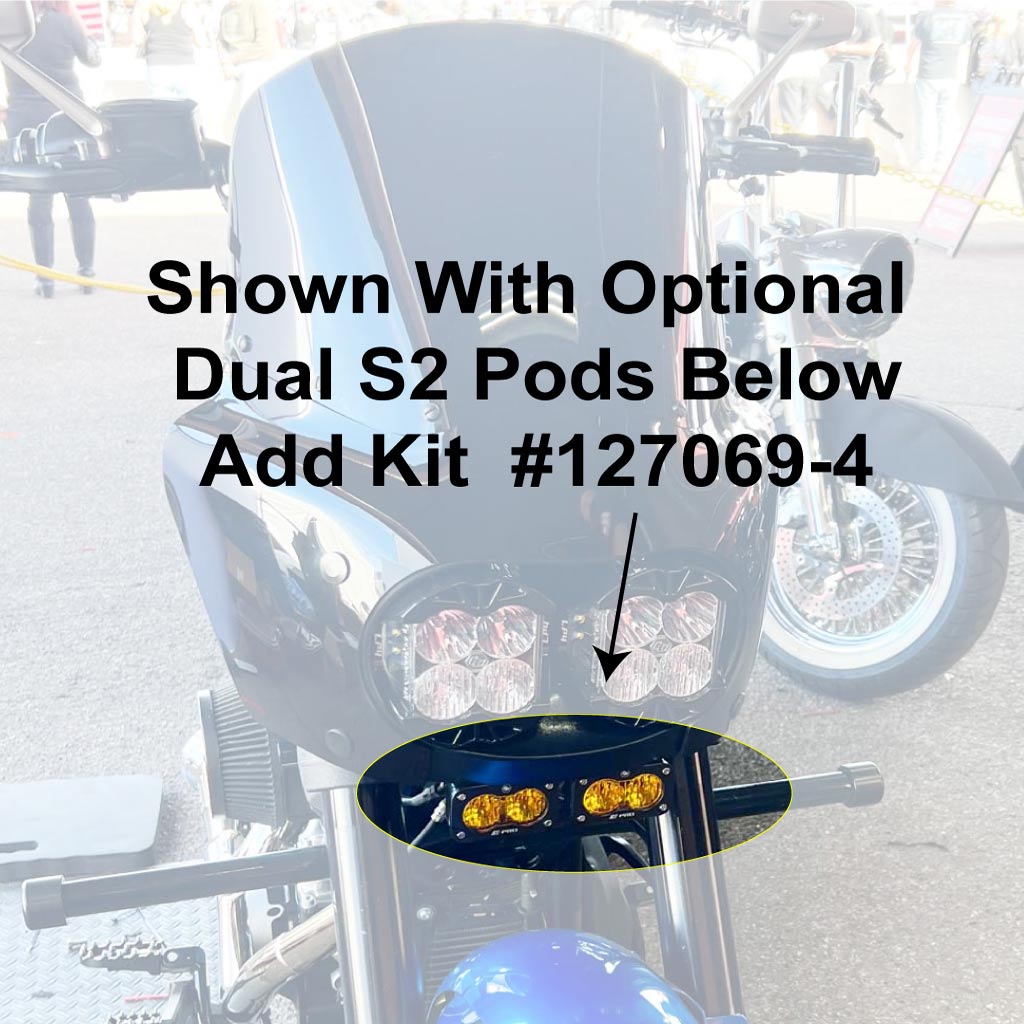

Modular Design: This A10 MOTO kit allows for additional add on S2 lights which can be mounted below the fairing as pictured below. For this Option Add Part number: 127070 bracket combo with add on harness.
IMPORTANT NOTE: When Adding part number 127070 Dual S2 kit, you MUST use the highest setting on your Dual LP4 Kit to allow clearance for the S2 kit (unless your bike has been raised)
Enhance your Harley Davidson motorcycle’s visibility wi
Enhance your Harley Davidson motorcycle’s visibility with A10 MOTO’s Performance Lighting Systems featuring the ultra-bright LP6, LP4, and other Baja Designs lights. Experience unparalleled illumination for safer, more enjoyable rides.
A10 MOTO.

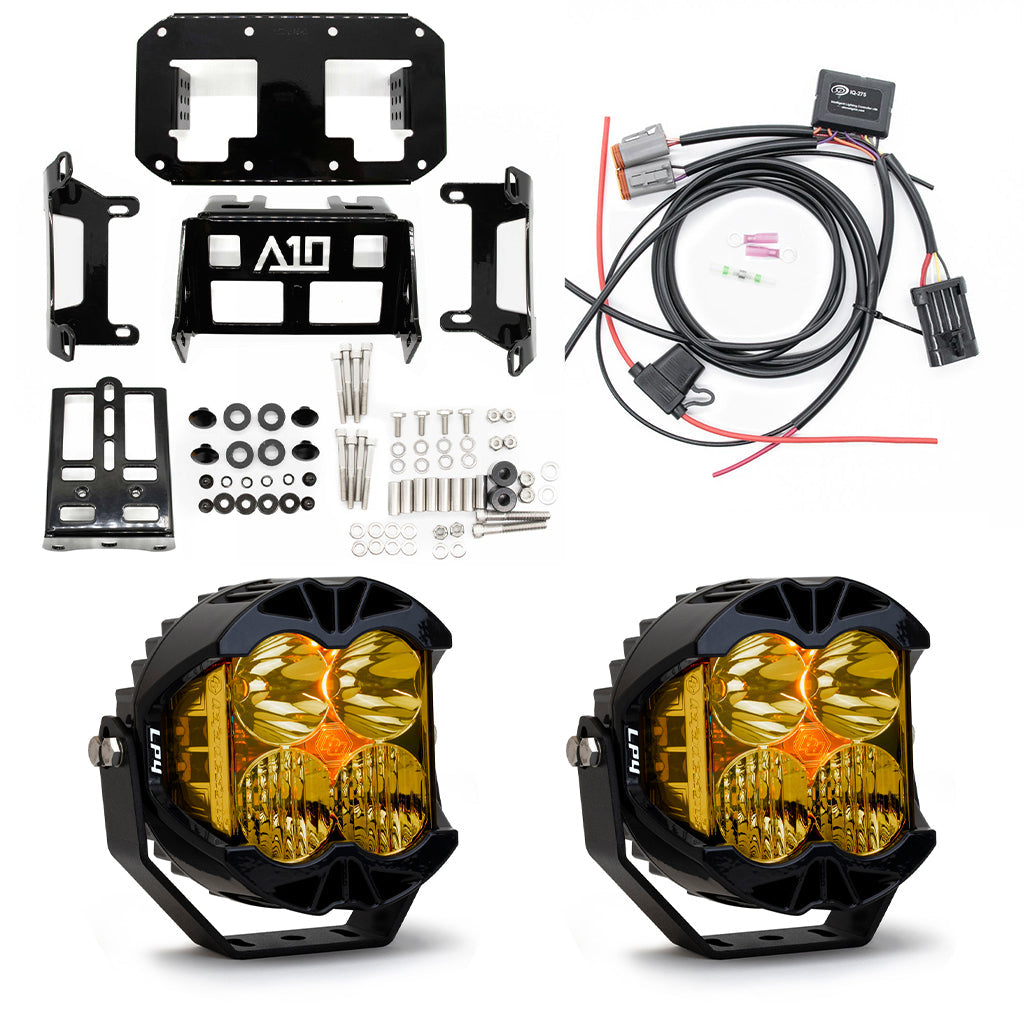

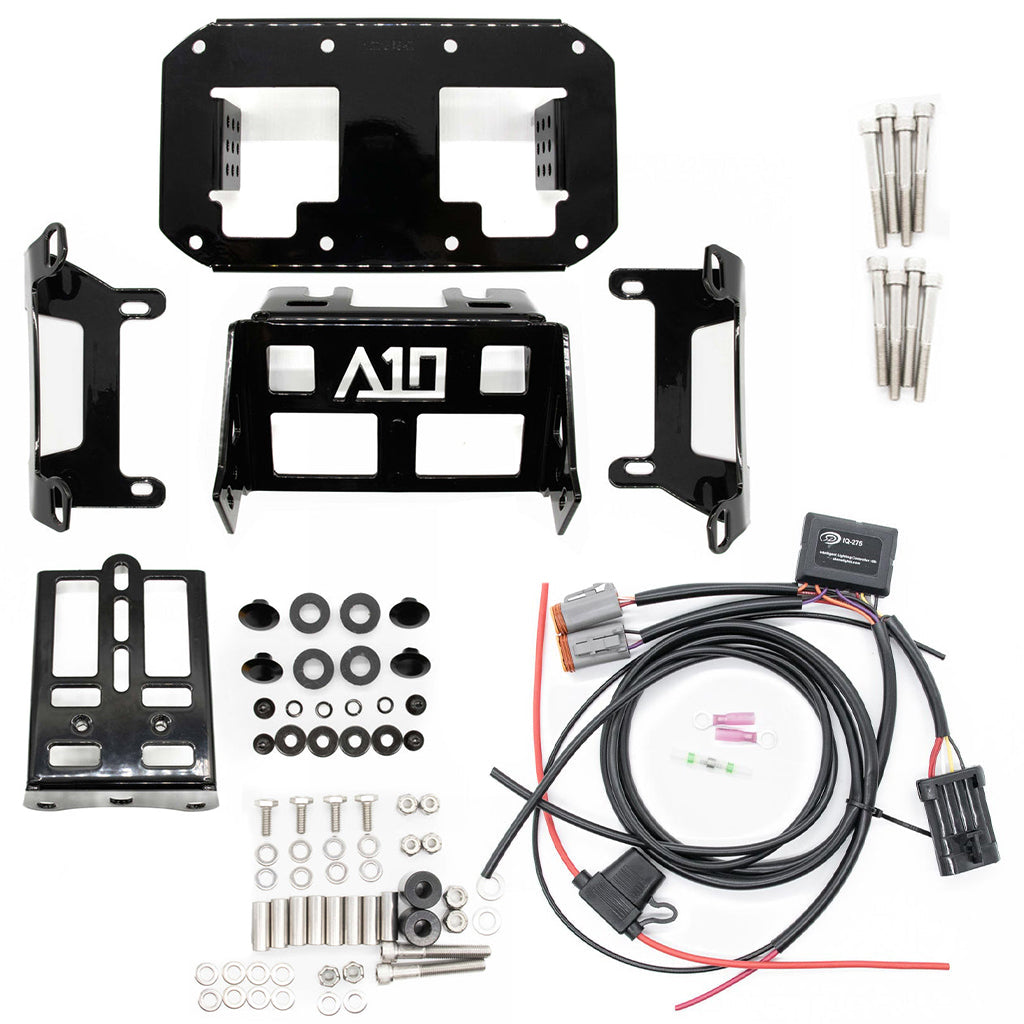

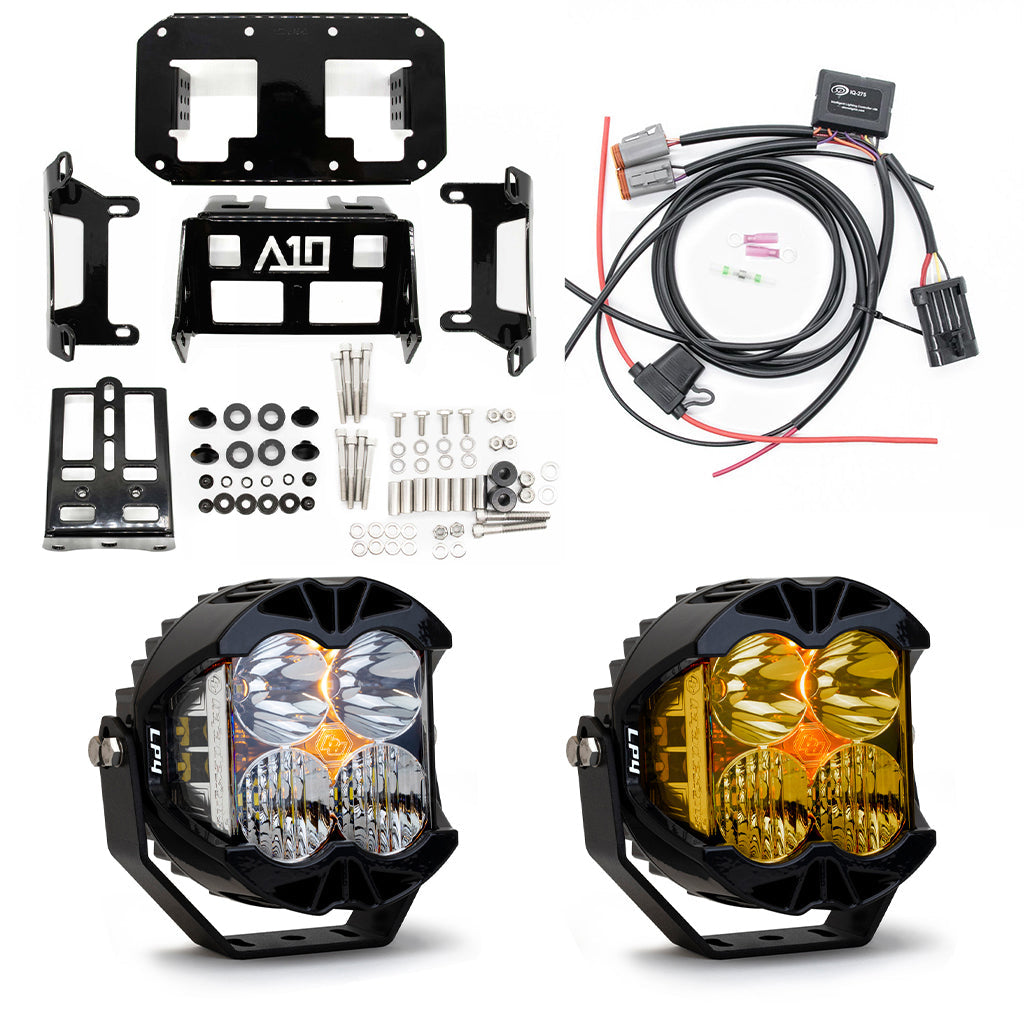

WHAT’S INCLUDED:
| Qty | Bracket Part Number / Description |
| 1 |

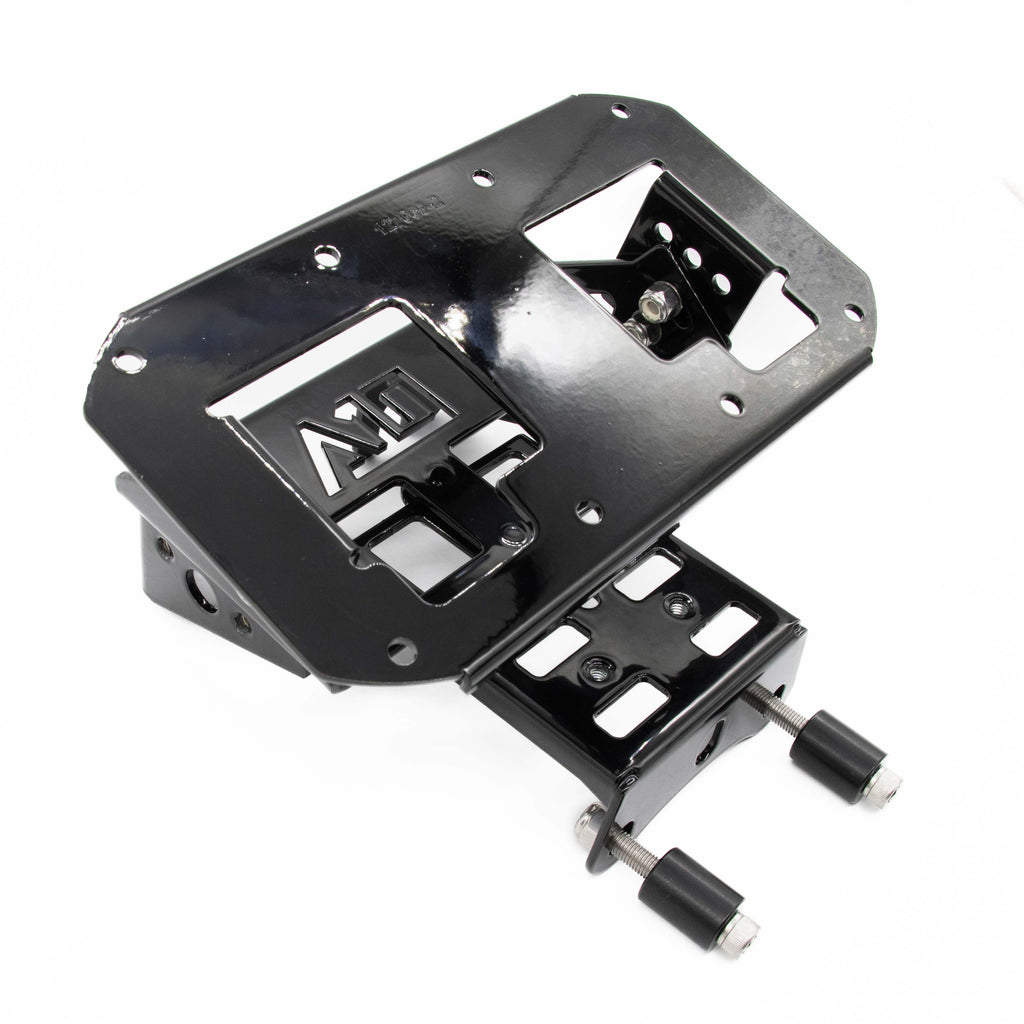

127069-1C Main Bracket New A10 Version that fits 127070 S2 Bracket |
| 1 |
127069-2 Dual Lp4 bracket |
| 1 |
127095-3D Lower Support Bracket New Common Across Many Kits |

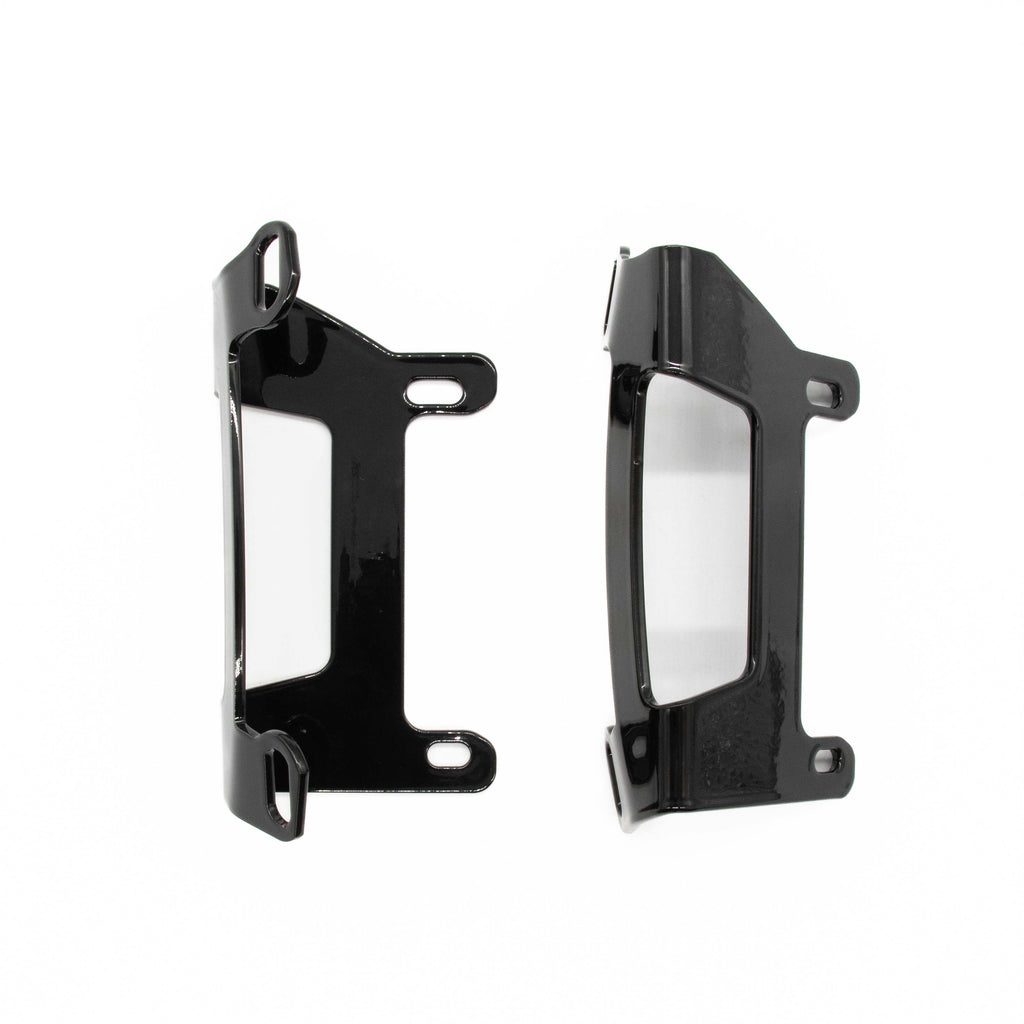

| 1 | 127084-1 Taco Fairing Mount To secure MS 7401 |
| 1 | 127084-2 Taco Fairing Mount To secure MS 7401 |
HARDWARE INCLUDED:
| QTY | Hardware Description |
| 4 | 1/4-20 x .75" Hex Head Bolt - SS |
| 8 | 1/4-20 "US" Washer - SS |
| 4 | 1/4-20 Nylock Nut - SS |
| 8 | 1 x 6mm Spacer |
| 8 | M6 x 40mm Socket Head - SS |
| 8 | 1/4" "Mil Spec" Washer- SS |
| QTY | Lower Mount (127095-3D) Hardware Kit |
| 2 |
5/16x18 x 1 3/4"long Grade 5 Socket Heads |
| 2 |
5/15x18 Grade 5 Nylock Nuts |
| 2 |
5/16 Grade 5 Washers |
| 2 |
5/16 Spacers .625 dia. x .875 Long |
