A10 Moto Universal 3.5" Bar Mount LP6 Mount Fits MS Road Warrior Fairing

A10 MOTO
127074
In stock
Light Brackets
127074
$149.99
Snap Logo Lease for as low as $/week Learn More

Get the Ultimate Lighting Set Up For Your Street Bob.

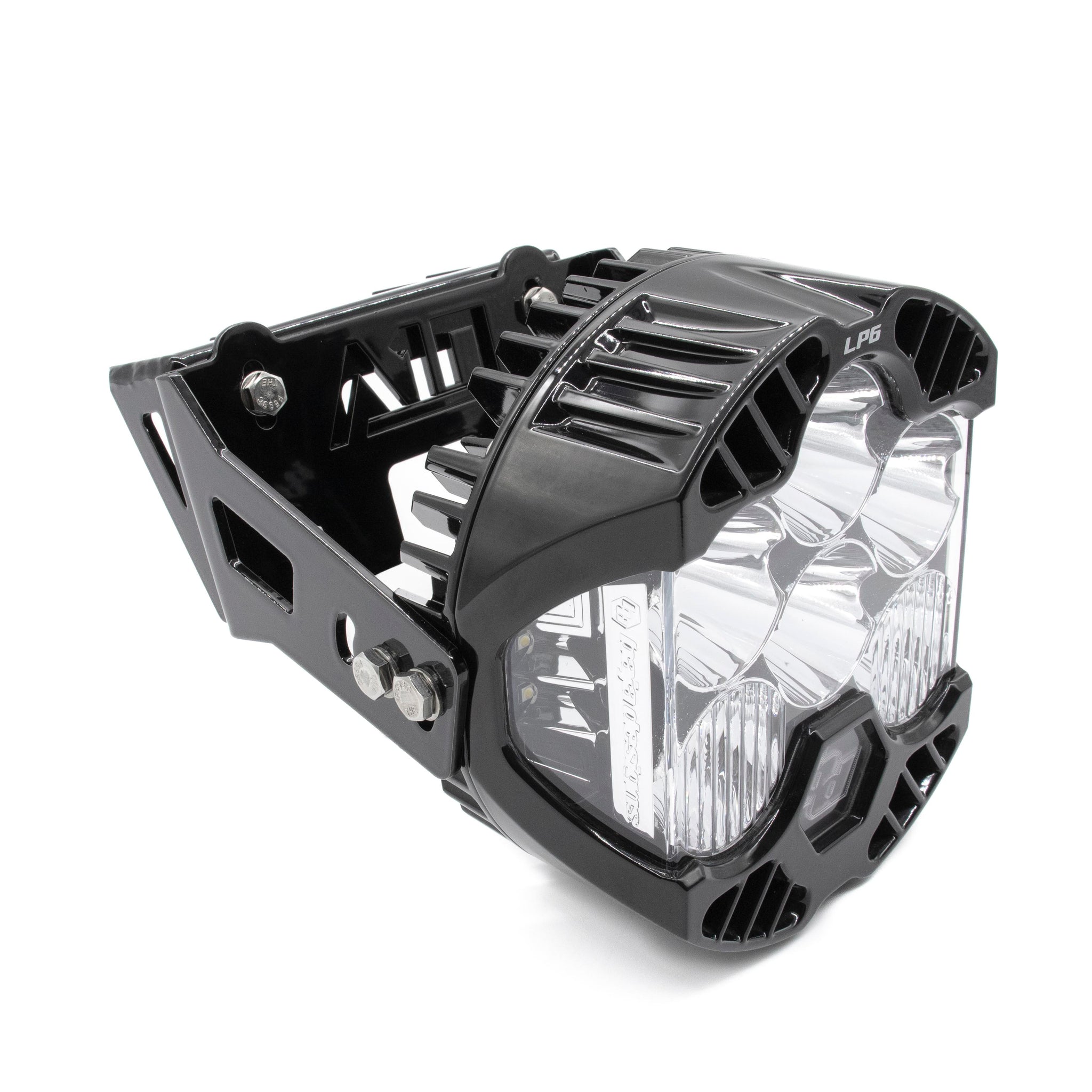

This bracket is set up for an LP6 to be used with a Memphis Shades Road Warrior Fairing MEM7371.

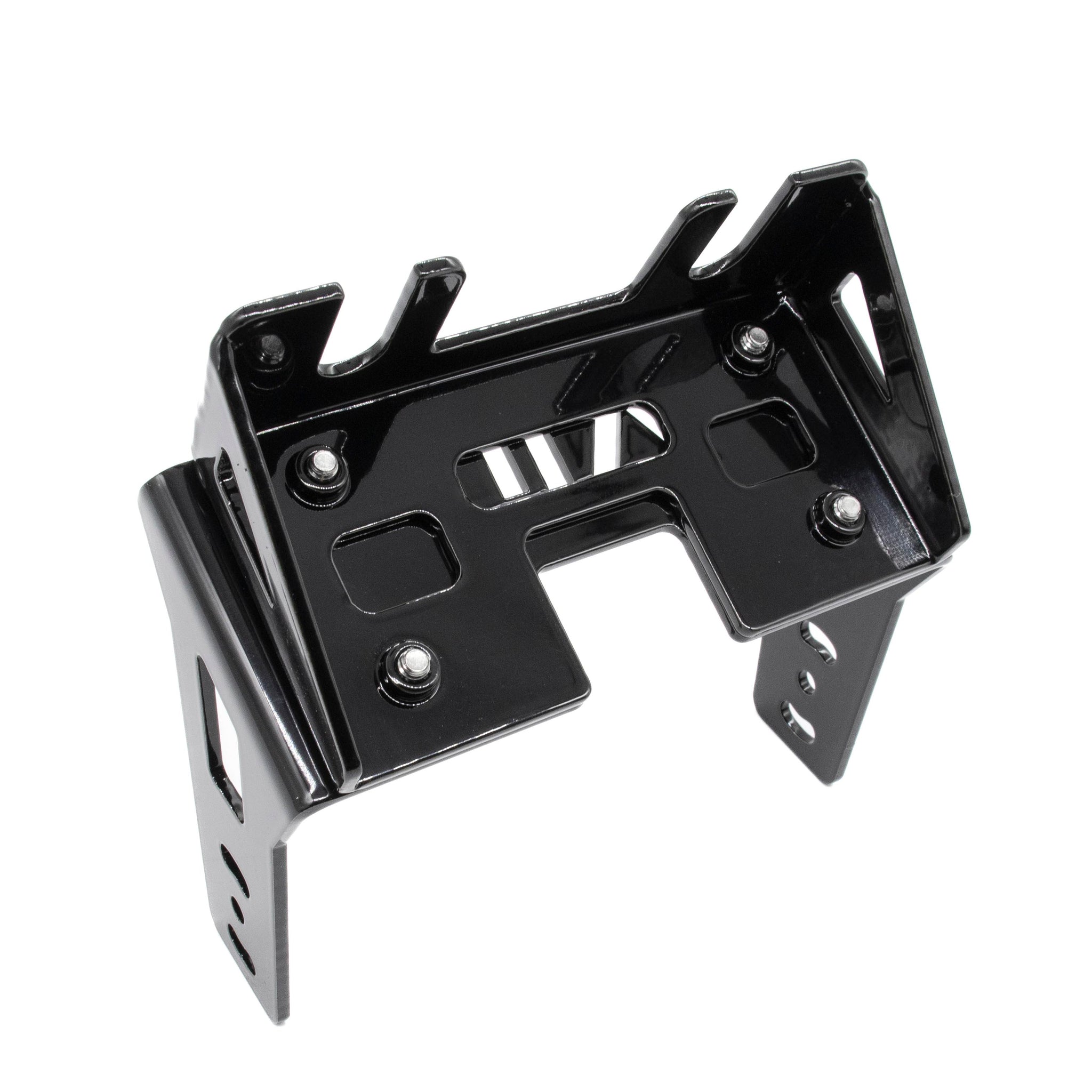

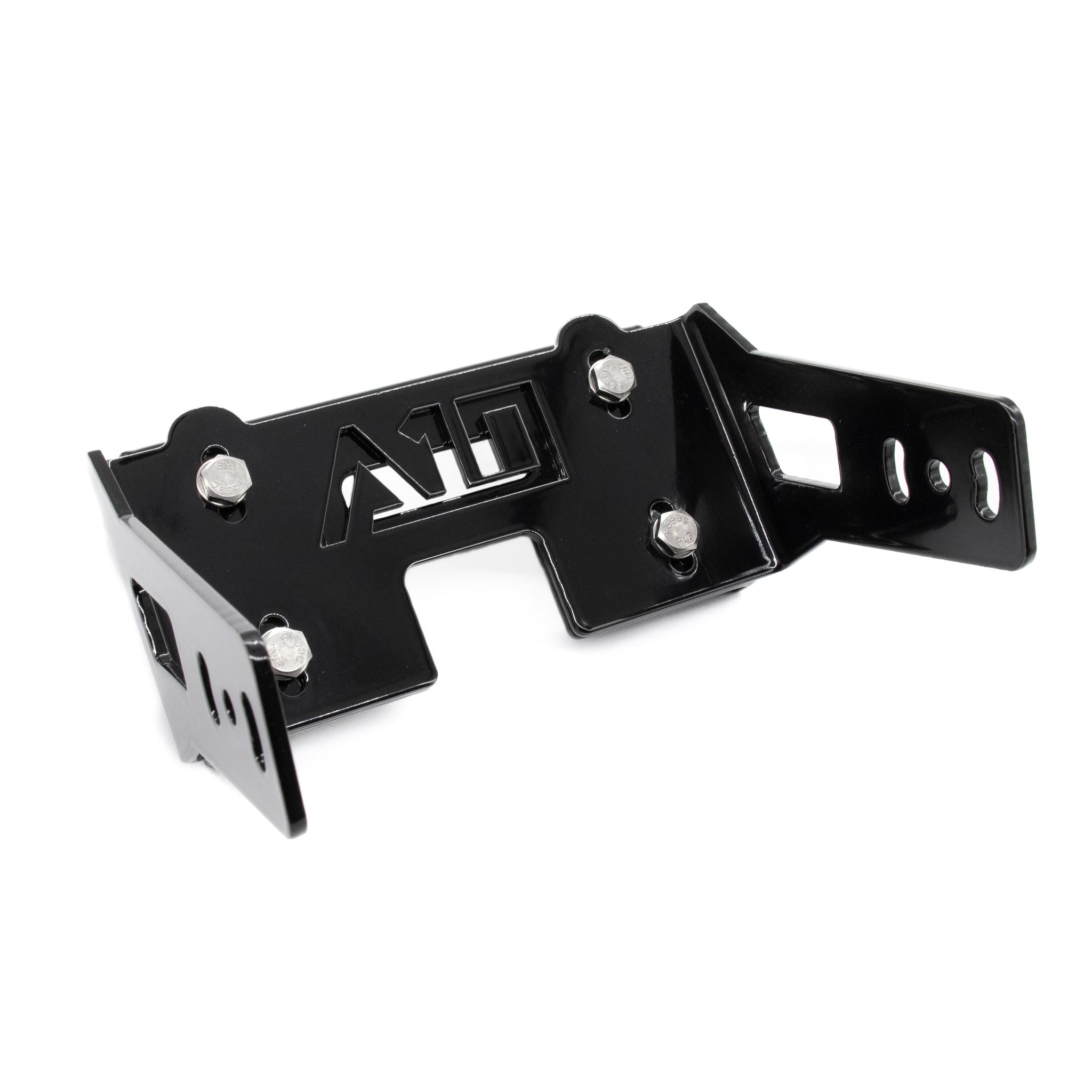

This positions the LP6 On any Bike using the 3.5" Bolts that secure your bars. Our Bracket is made from Heavy 10 gauge material to reduce the vibration and insure top performance.

Do Not Mount your LP6 Light directly to your fairing. It Will Fail and It will Not perform as designed.

Simply Put... The Absolute Brightest Light Kit Available for your Street Glide.

This Kit comes complete with a CNC Powder-coated Gloss Black Mounting Bracket, Hardware and Our Spec Engineered Plug and Play Wire Harness all Made In the USA.

Street Bob LP6 Wire Harness: The Original Harley LP6 Wire Harness is proudly engineered here in California. It's created to meet or exceed both manufactures quality standards from H.D. To Baja Designs.

Easy to use and 100% Plug and Play using relays and specially wired to "Eliminate" Additional Amp draw from your existing H.D. Harness. We have engineered this kit to be safe and effective in using only the "trigger" from your H.D. to signal the harness which controls 3 key functions.. Day Time Running, Low and High Output.

Avoid costly imports and permanent damage to your factory harness. When plugging in BIG HORSEPOWER Lighting you want the Best and Safest System to protect your investment. ALL Our H.D. Wire Kits come with a Life Time Warranty.

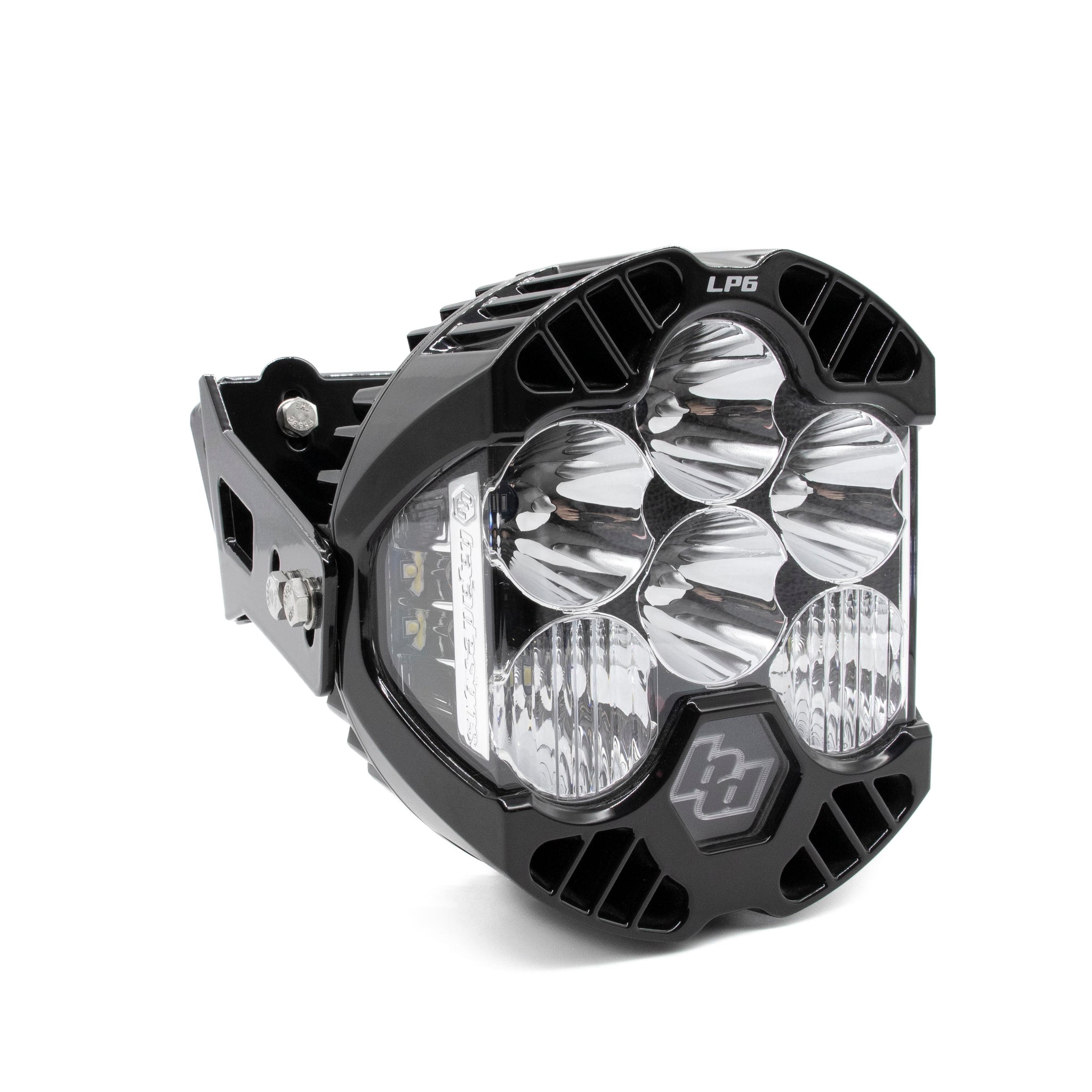

    The LP6 Pro is a 6-inch powerhouse featuring a total of 10,300 lumens and a 200-degree spread of usable LED light. The LP6 features 8,600 forward-projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT). To keep your light performing at its highest potential, the LP6 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks – drastically improving cooling capacity and performance. With an amber day-time running light, low power, and high power mode, the LP6 easily fulfills all your lighting needs.This harness is all you will need to in order to get full versatility and functionality from your LP9 or LP6 lights!

    • Satisfactions Guarantee - 30 Day Money Back Guarantee
    • Limited Lifetime Warranty - Complete Purchase Protection
    • uService - Replaceable Lenses And Optics
    • ClearView - All The Light, Right Where You Need It.
    • MoistureBlock - Waterproof, Rain Proof, Submersible
    • CopperDrive - Only LED Driven At 100 percent
    • 5000K Daylight - Less Driver Fatigue, Natural Color
    • Forward Projecting Lumens: 8,600 Utilizing 6 LEDs
    • Forward Projecting Wattage/Amps: 90W / 6.5A
    • IPT Lumens: 1,700 Utilizing 4 LEDs
    • IPT Wattage/Amps: 15W / 1.0A
    • Dimensions: 7.5 inch Height / 6.5 inch Width / 3.2 inch Depth
    • Weight: 4.2lbs
    • LED Life Expectancy: 49,930 Hours
    • Front Lens: Hardcoated Polycarbonate
    • Housing: Hard Anodized Machined Aluminum
    • Bezel: Billet Machined Aluminum
    • Hardware and Bracket Material: Stainless Steel
    • Exceeds MIL-STD810G (Mil-Spec Testing)
    • Built-In Overvoltage Protection
    • IP69K (Waterproof up to 9ft and Pressure Washable)
    • IK10 Compliant (Mechanical Impact Testing)
    Enhance your Harley Davidson motorcycle’s visibility with A10 MOTO’s Performance Lighting Systems featuring the ultra-bright LP6, LP4, and other Baja Designs lights. Experience unparalleled illumination for safer, more enjoyable rides.
    A10 MOTO.

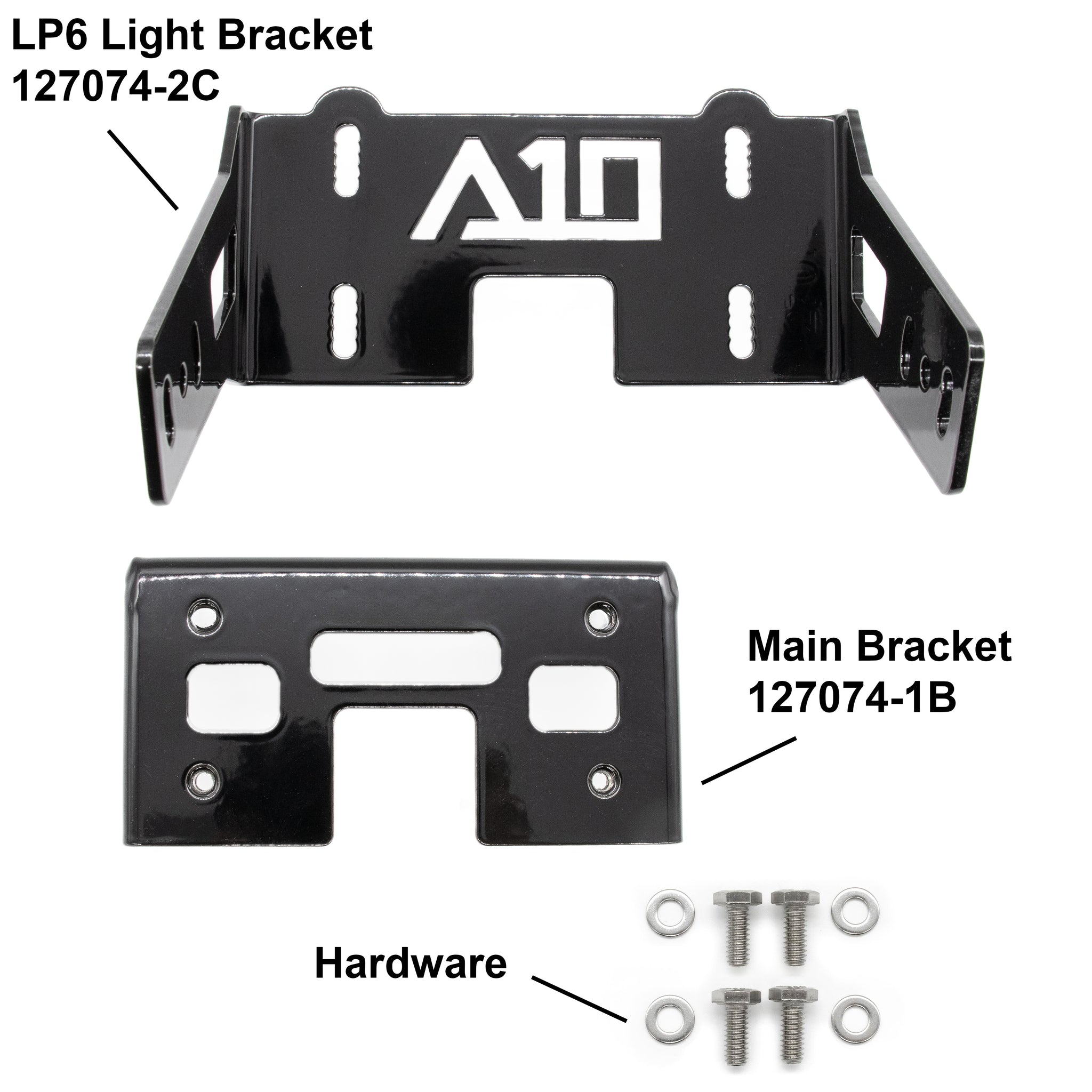

    What’s Included:

    Qty Bracket Part Number / Description
    1 127074-1 3.5" Universal Style Main Bracket
    1 127074-2 LP6 Mount


    Hardware Included:

    QTY Hardware Description
    4 1/4-20 x 5/8" L Stainless Steel Hex
    4 1/4" Stainless Flat washer
